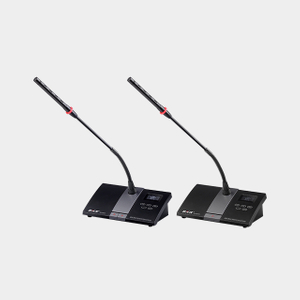

Voting Type Wired Conference Control System Unit

Share to:
  • BLS-5516C/BLS-5516D

Availability:
Quantity:

BLS-5516C

*With automatic video-tracking function/voting function.

*With microphone ,speaking button and indicator lamp that can show and control the state of speech.

*Plastic microphone cover shell and metal base.

*With a microphone unit connecting cable.

*Built-in speaker,equiped LCD screen show working state.

*With Chairman priority key;could shut all the delegate unit.

*The chairman unit can be placed in any position in loop.

*The chairman unit is unrestricted by the any function.

*The chairman unit quantity is unrestricted in the loop.

*Electronic key for adjust speaking volume and speaker volume.

*The power for units is supplied by the master controller at 24V safe voltage.

*Hand-in-hand connection method.

*With a microphone unit connecting cable 2m, 8P core line, convenient installation can increase efficiency.


Technical Parameters:

Type: capacitance

Polar pattern: one direction

Frequency response: 40Hz-16KHz

Sensitivity: -43±2dB@1KHz

Input voltage: DC 24V(powered by host)

Min input impedance: 1KΩ

S /N Ratio: 68dB(A)

Output connector: 8P terminal

Input and output wire: 2M 8P shielded line

Mic length:435mm

Size::125*195*65mm

Weight:1300g


BLS-5516D

*With automatic video-tracking function/voting function.

*With microphone ,speaking button and indicator lamp that can show and control the state of speech.

*Plastic microphone cover shell and metal base.

*With a microphone unit connecting cable.

*Built-in speaker,equiped LCD screen show working state.

*Electronic key for adjust speaking volume and speaker volume.

*The power for units is supplied by the master controller at 24V safe voltage.

*Hand-in-hand connection method.

*With a microphone unit connecting cable 2m, 8P core line, convenient installation can increase efficiency.


Technical Parameters:

Type: capacitance

Polar pattern: one direction

Frequency response: 40Hz-16KHz

Sensitivity: -43±2dB@1KHz

Input voltage: DC 24V(powered by host)

Min input impedance: 1KΩ

S /N Ratio: 68dB(A)

Output connector: 8P terminal

Input and output wire: 2M 8P shielded line

Mic length:435mm

Size::125*195*65mm

Weight:1300g
