Voting Type Wired Conference Control System Unit

Share to:
  • BLS-5513C/BLS-5513D

Availability:
Quantity:

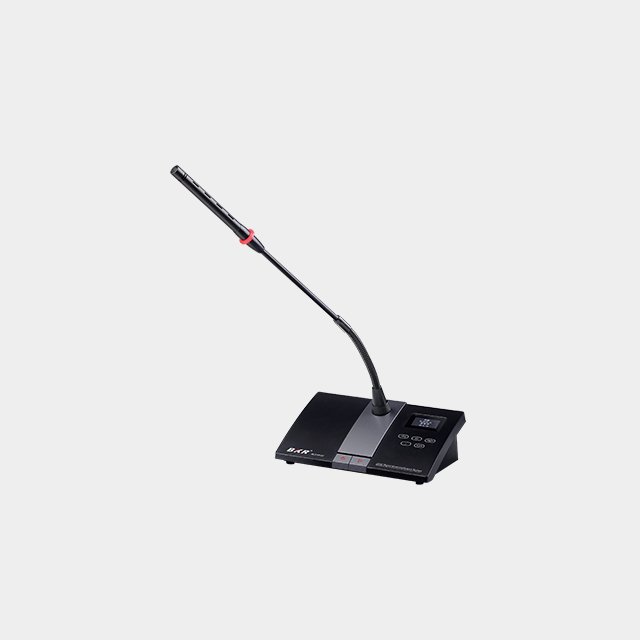

BLS-5513C

*With automatic video-tracking function/voting function.

*With microphone ,speaking button and indicator lamp that can show and control the state of speech.

*Whole plastic microphone shell.

*128*64 LCD screen displays working status.

*With a microphone unit connecting cable.

*T-shaped 8-core line for unit connection.

*Single projection; With Anti-gas sonic boom and wind shield.

*With Chairman priority key;could shut all the delegate unit.

*The chairman unit can be placed in any position in loop.

*The chairman unit is unrestricted by the limiting function.

*The chairman unit quantity is unrestricted in the loop.

*High sensitivity microphone.

*The power for units is supplied by the master controller at 24V safe voltage.

*Hand-in-hand connection method.

*With a microphone unit connecting cable 2m, 8P core line, convenient installation can increase efficiency.


Technical Parameters:

Type: capacitance

Polar pattern: one direction

Frequency response: 40Hz-16KHz

Sensitivity: -43±2dB@1KHz

Input voltage: DC 24V(powered by host)

Min input impedance: 1KΩ

S /N Ratio: 68dB(A)

Input and output wire: 2M 8P shielded line,2 meter T3M cable

Mic length:410mm

Size:190*125*63mm

Weight:820g


BLS-5513D

*With automatic video-tracking function/voting function.

*With microphone ,speaking button and indicator lamp that can show and control the state of speech.

*Whole plastic microphone shell .

*128*64 LCD screen displays working status.

*With a microphone unit connecting cable.

*T-shaped 8-core line for unit connection.

*Single projection; With Anti-gas sonic boom and wind shield.

*High sensitivity microphone.

*The power for units is supplied by the master controller at 24V safe voltage.

*Hand-in-hand connection method.

*With a microphone unit connecting cable 2m, 8P core line, convenient installation can increase efficiency.


Technical Parameters:

Type: capacitance

Polar pattern: one direction

Frequency response: 40Hz-16KHz

Sensitivity: -43±2dB@1KHz

Input voltage: DC 24V(powered by host)

Min input impedance: 1KΩ

S /N Ratio: 68dB(A)

Input and output wire: 2M 8P shielded line,2 meter T3M cable

Mic length:410mm

Size:190*125*63mm

Weight:820g
