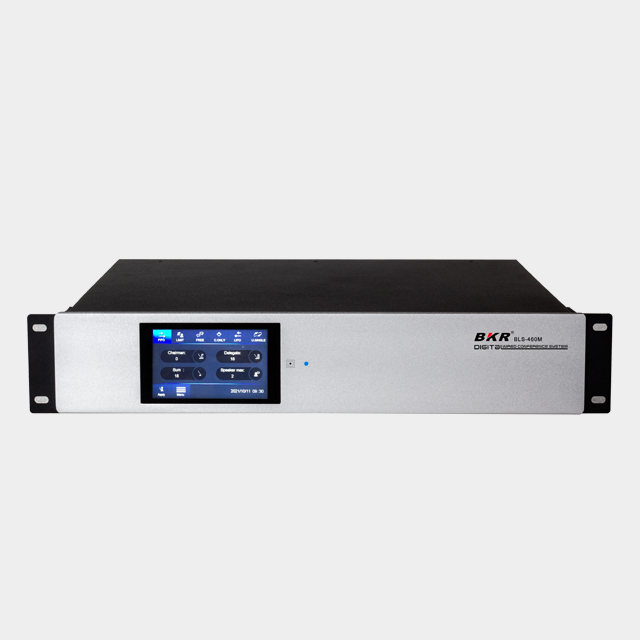

*4.3 inch full view TFT touch screen display working situation and operating system.
*Four roads high definition(HD) real time video-tracking function, four HDMI input and one HDMI output.
*250W big power supply, can connect 60-80 microphone unit.
*LAN function. With the network connection can achieve remote controller setting by APP. Now support Android system.
*Hot backup function, when controller have problem like such no power will backup to backup machine let the meeting continue smoothly.
*The number of speakers: 1, 2,3,4,5,6 and full opening
*7 meeting work modes: ①chairman mode ②first in first out mode ③last in first out mode ④LIMIT mode ⑤FREE mode ⑥responder mode ⑦Apply speaking mode (just for some model unit)
*Equipped with audio parallel output and a 6.3 jack output, conference recording outputs and background music inputs interface.
*RS232 interface can be achieved using computer software to control entire
conference system function.
Technical Parameters:
Power supply: AC110/240V 50Hz~60Hz
Frequency response: 100Hz-12.5Hz
Output impedance:
REC:200Ω LINE:200Ω
BALANCE: 300Ω
UNBALANCE: 400Ω
Input impedance: LINE:50KΩ PBIN:50KΩ
S /N Ratio: 100dB (1KHz THD1%)
Size:480*370*85mm
Weight:6KG
