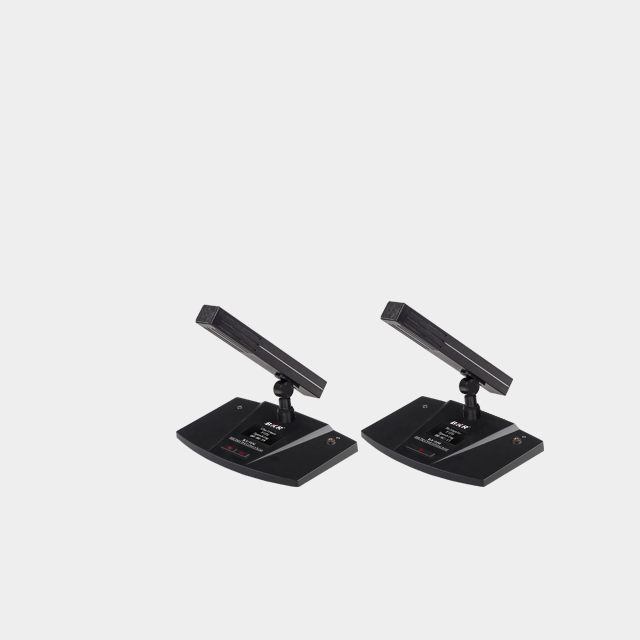

Video Type Wired Conference Control System Unit

Share to:
  • BLS-4525C/BLS-4525D
Availability:
Quantity:

BLS-4525C

*With automatic video-tracking function.

*With microphone ,speaking button and indicator lamp that can show and control the state of speech.

*Metal base bottom and plastic cover, thin body.

*128*64 LCD screen displays working status.

*With a microphone unit connecting cable.

*T-shaped 8-core line for unit connection.

*3.5mm stereo sound output socket; can be used as earphone connection for hearing.

*Single projection; With Anti-gas sonic boom and wind shield.

*With Chairman priority key;could shut all the delegate unit.

*The chairman unit can be placed in any position in loop.

*The chairman unit is unrestricted by the limiting function.

*The chairman unit quantity is unrestricted in the loop.

*High sensitivity microphone.

*The power for units is supplied by the master controller at 24V safe voltage.

*Hand-in-hand connection method.


Technical Parameters:

Type: capacitance

Polar pattern: one direction

Frequency response: 40Hz-16KHz

Sensitivity: -43±2dB@1KHz

Input voltage: DC 24V(powered by host)

Min input impedance: 1KΩ

S /N Ratio: 68dB(A)

Input and output wire: 2M 8P shielded line,2 meter T3M cable

Mic length:435mm

Size: 190*125*31mm

Weight:1050g


BLS-4525D

*With automatic video-tracking function.

*With microphone ,speaking button and indicator lamp that can show and control the state of speech.

*Metal base bottom and plastic cover, thin body.

*128*64 LCD screen displays working status.

*With a microphone unit connecting cable.

*T-shaped 8-core line for unit connection.

*3.5mm stereo sound output socket; can be used as earphone connection for hearing.

*Single projection; With Anti-gas sonic boom and wind shield.

*High sensitivity microphone.

*The power for units is supplied by the master controller at 24V safe voltage.

*Hand-in-hand connection method.


Technical Parameters:

Type: capacitance

Polar pattern: one direction

Frequency response: 40Hz-16KHz

Sensitivity: -43±2dB@1KHz

Input voltage: DC 24V(powered by host)

Min input impedance: 1KΩ

S /N Ratio: 68dB(A)

Input and output wire: 2M 8P shielded line,2 meter T3M cable

Mic length:435mm

Size: 190*125*31mm

Weight:1050g
