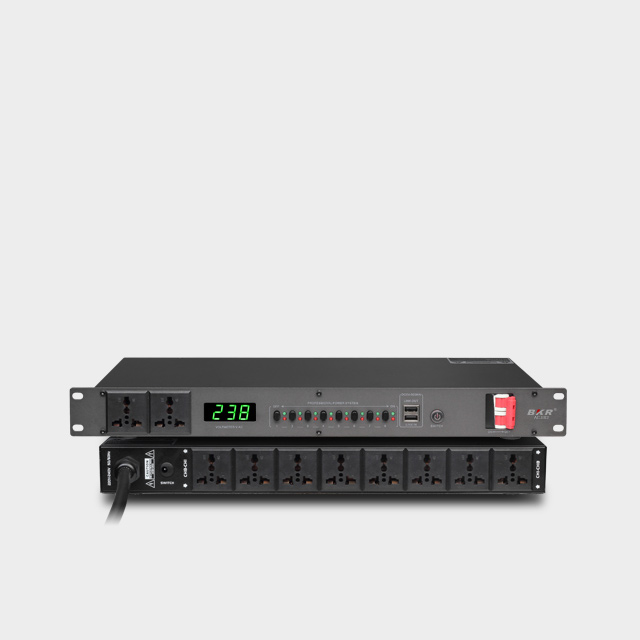

Feature:
* 8-way universal socket relay controlled + 2-way universal socket direct;
* Single power / total power / output current: 2000W / 6000W / 30A 277VAC
* Output power socket specification: flame retardant ABS material, can withstand 30A current at most, phosphor copper material, standard universal socket
* Built in switching power supply, suitable for global voltage ac90-260v 50-60Hz;
* Push button touch switch, or external control switch interface;
* The maximum output of USB interface is 5V / 500mA, and DJ lamp can be connected;
* Switching interval / timing time of each circuit: 1s;
* Support the panel to control each channel independently;
* Air switch, overcurrent protection;
* Support stacker cascade;
* Pass key can open all channels at the same time, open in sequence and close in reverse order.
Parameter:
Rated output voltage: AC 220v.50hz
Controllable power supply: 10 channels
Delay time of each action: 1s
Power supply: VAC 50 / 60Hz 25A
Each output is provided with indicator light
Single circuit rated output current: 30A
