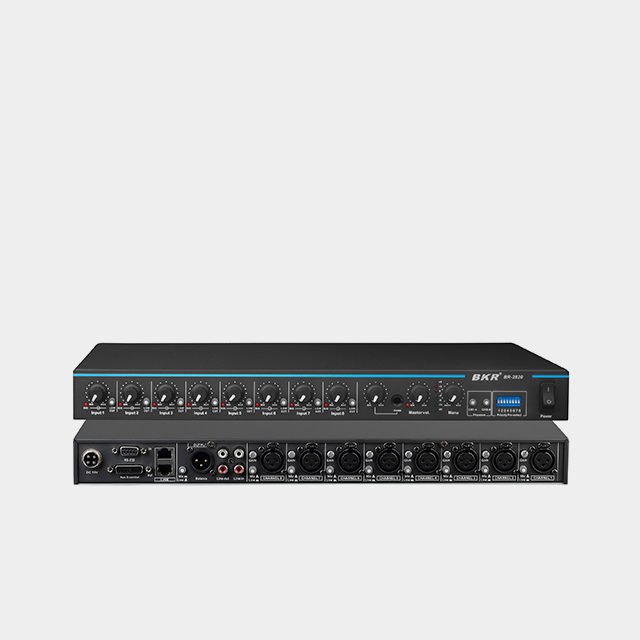

• 8-channel automatic microphone/line input, or auxiliary input, can switch manual mode prior to automatic mode function
• 48V phantom power can be provided for channels 1-4 or 5-8
• Each channel has a built-in compressor to prevent individual channels from overloading, and each channel's low-cut switch is adjustable
•Extended series: Provides eight balanced inputs, and at the same time, you can simply connect the machines in series (a dedicated serial connection cable is attached) to achieve the number of expansions you need. The functions of the serial machine remain unchanged.
• Balanced input and output, any input and output channels, microphone/line level selector switch
• Any input channel input gain control
•Main output level control with LED display, external control equipment uses RS-232 connector
Input impedance: Microphone: 4.3KΩ
Line input: 28KΩ
Series input: 20KΩ
Output impedance: Balance: 75KΩ
Unbalance: 2.2KΩ
Series output: 100Ω
Front-end output impedance: 2.2KΩ
Maximum input level: Microphone: -24dBV
Line: 16dBV
Front-end output level: -4.4dBV
Maximum gain: 62dB
Frequency response: 20~20KHz
Inherent noise: -80dBV
THD+N: ≤0.03%
Phantom power output: DC 48V
Power supply: AC 220V
Power adapter output: AC 15V
Power consumption: 25W
