Discussion Type Wired Conference Control System Unit

Share to:
  • BLS-3505C/BLS-3505D
Quantity:

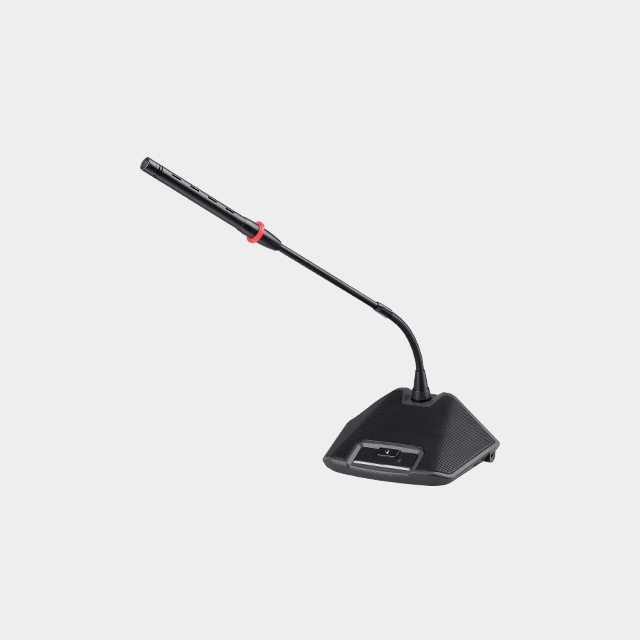

BLS-3505C

*With microphone ,speaking button and indicator lamp that can show and control the state of speech.

*Metal microphone shell bottom.

*Two groups of 3.5mm stereo sound output socket; can be used as speech sound input and earphone connection.

*Built-in hi-fi speaker, volume control.

*With a microphone unit connecting cable.

*Single projection; With Anti-gas sonic boom and wind shield.

*With Chairman priority key;could shut all the delegate unit.

*With agreed speaking key.

*The chairman unit can be placed in any position in loop.

*The chairman unit is unrestricted by the limiting function.

*The chairman unit quantity is unrestricted in the loop.

*High sensitivity microphone.

*The power for units is supplied by the master controller at 24V safe voltage.

*Hand-in-hand connection method.

*With a microphone unit connecting cable 2m, 8P core line, convenient installation can increase efficiency.


Technical Parameters:

Type: capacitance

Polar pattern: one direction

Frequency response: 40Hz-16KHz

Sensitivity: -43±2dB@1KHz

Input voltage: DC 24V(powered by host)

Min input impedance: 1KΩ

S /N Ratio: 68dB(A)

Output connector: 8P terminal

Input and output wire: 2M 8P shielded line

Mic length:410mm

Size:160*140*65mm

Weight:735g


BLS-3505D

*With microphone ,speaking button and indicator lamp that can show and control the state of speech.

*Metal microphone shell bottom.

*Two groups of 3.5mm stereo sound output socket; can be used as speech sound input and earphone connection.

*Built-in hi-fi speaker, volume control.

*With a microphone unit connecting cable.

*Single projection; With Anti-gas sonic boom and wind shield.

*With speaking key , also is apply for speak key.

*High sensitivity microphone.

*The power for units is supplied by the master controller at 24V safe voltage.

*Hand-in-hand connection method.

*With a microphone unit connecting cable 2m, 8P core line, convenient installation can increase efficiency.


Technical Parameters:

Type: capacitance

Polar pattern: one direction

Frequency response: 40Hz-16KHz

Sensitivity: -43±2dB@1KHz

Input voltage: DC 24V(powered by host)

Min input impedance: 1KΩ

S /N Ratio: 68dB(A)

Output connector: 8P terminal

Input and output wire: 2M 8P shielded line

Mic length:410mm

Size:160*140*65mm

Weight:735g
