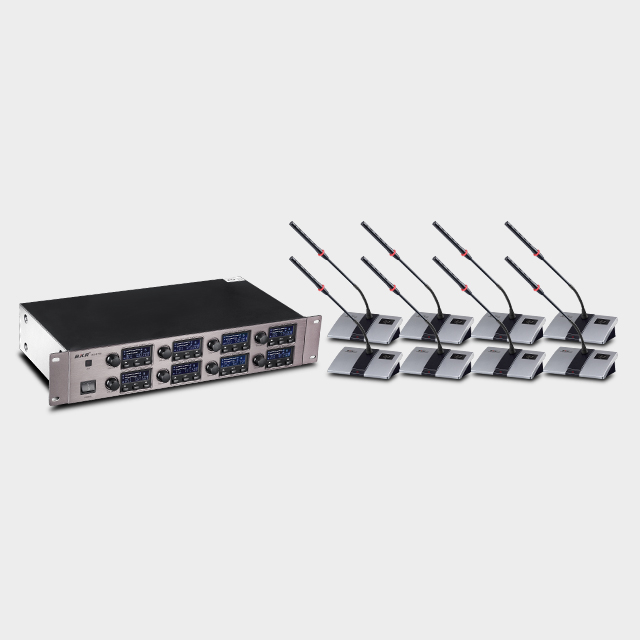

8CH UHF Wireless Conference Microphone System

Share to:
  • KX-D718
Availability:
Quantity:

*8 channels.Adjustable frequency. line system.

*IR automatic. totally 400(50*8) frequency.

*Microphone can be used in every channal.

*3 controllers can used simultaneously.

*LCD screens show working status on the receiver and emitter.

*There are 8 balanced output,1 XLR mixed output,1 mixed unbalanced output,4 rubber antennas.

*Consumption is 80mA. AA 1.5V*3 battery power supply,support 8 hours.

*Light ring on the microphone head will display working status.

*Working distance: 50-80 meter

*It's suitable for various kinds of conference and performance occasion.


Technical parameter:

Channel number: 8

Oscillation Mode: PLL synthesized

Modulation Mode: FM

Frequency Range: UHF 600-699.75MHz

Frequency Stability : +0.001%

Max. Deviation Range: +50KHz

S/N Ratio : >105dB

T.H.D: <0.5%@1KHz

Sensitivity: 1.2/UV@S/N=12dB

Power Supply: DC 12~17V

Gooseneck mic length:415mm

Audio Output: Independent: 0-400mV

                     Mixed: 0-300mV


Transmitter parameters (Shoot machine parameter):

Power Supply: DC 4.5V (1.5V AA*3)

Microphone power consumption (Consume an electricity quantity): 100mA

Carry a frequency: UHF 500MHz~900MHz

Frequency stability (Frequency stability): ±0.001%

Maximum frequency deviation (Max.eviation Range): ±30KH

S/N Ratio: >60dB

Adjacent channel interference ratio (F/N Ratio): >80dB

Dynamic range (Dynamic range): ≥100dB

Type (Type): Capacitance

Polar mode (polar psttern): Single direction (One direction)

Frequency response (Frequency Resonse): 40Hz~20KHz

Microphone sensitivity (Sensitivity): -43±3dB@1KHz
