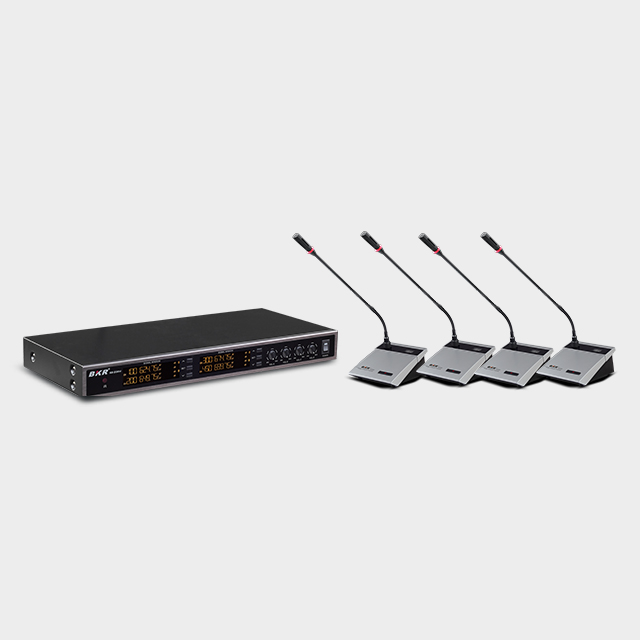

4CH UHF Wireless Conference Microphone System

Share to:
  • KX-D3914

*4 channels.Adjustable frequency. line system.

*IR automatic. totally 400(100*4) frequency.

*Microphone can be used in every channal.

*4 controllers can used simultaneously.

*LCD screens show working status on the receiver and emitter.

*There are 2 balanced output and 1 mixed unbalanced output,2 rubber antennas.

*Consumption is 80mA. AA 1.5V*3 battery power supply,support 8 hours.

*Light ring on the microphone head will display working status.

*Working distance: 50-80 meter

*It's suitable for various kinds of conference and performance occasion.

Receiver parameter:

Channel number: 4

Oscillation Mode: PLL synthesized

Modulation Mode: FM

Frequency Range: UHF 600-699.75MHz

Frequency Stability : +0.001%

Max. Deviation Range: +50KHz

S/N Ratio : >105dB

T.H.D: <0.5%@1KHz

Sensitivity: 1.2/UV@S/N=12dB

Power Supply: DC 12~17V

Gooseneck mic length:435mm

Audio Output: Independent: 0-400mV

Mixed: 0-300mV

Conference microphone series

4CH UHF Wireless Conference Microphone
