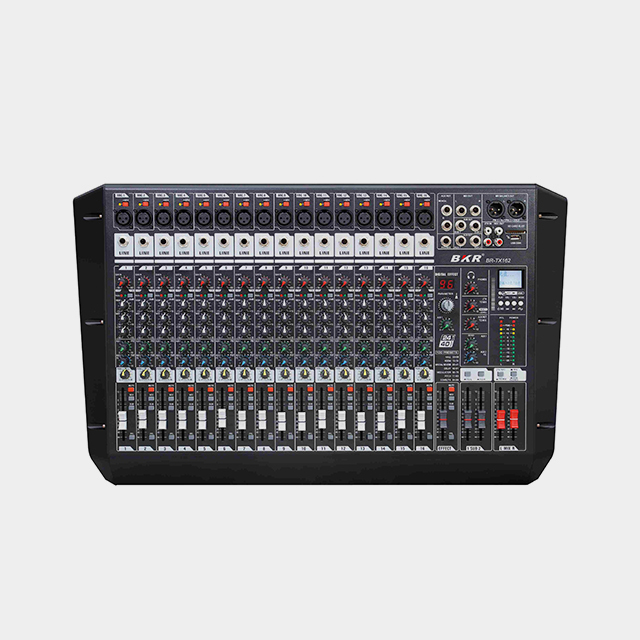

Ultra-thin, 2-group, digital display effect mixer
3 segments British style EQ
Ultra-thin structure design, compact and simple appearance
Built-in power supply, low noise
16 mono input, external effector
+48V phantom power
Two sets of left and right main outputs, two groups of outputs
Powerful monitoring function, able to monitor all input and output terminals separately
High-quality 24bit digital display effector
MP3 player function, equipped with SD card and USB interface
Frequency range: 20Hz-20KHz ±0.5dB
Microphone input equivalent input noise: MIC EIN@MAX gain, 150 ohms source impedance-128dBu
Bus noise: Noise(20Hz-20KHz measurement bandwidth)
Mixing: mix@max,faders down ＜-85dBu
Crosstalk between channels Channel mute: >90dB
Fader position: >90dB
Auxiliary sending port: >86dB
Input and output impedance Microphone input: 2.4KΩ
Line input: 11KΩ
Output: 75KΩ
Input and output level Maximum microphone input: +17dBu
Maximum line input +30dBu
Stereo maximum input: +30dBu
Maximum mixing output: +20dBu
Headphone maximum output: 300mw/200
EQ (mono input) HF (high frequency): 12KHz±15dB
Intermediate frequency: 2.5KHz±15dB
Low frequency: 80Hz±15dB
Power consumption:<30W
Dimensions: 640*415*85*60mm
Weight: 5.7KG
